As an original manufacturer with 19 years of experience specializing in aluminum foil processing equipment, Jiangsu Finest has delivered reliable equipment solutions to manufacturers. To meet the industry’s current demands for large-scale production, automation, and low material loss, Jiangsu Finest independently developed and refined this fully automatic aluminum foil tray production line.

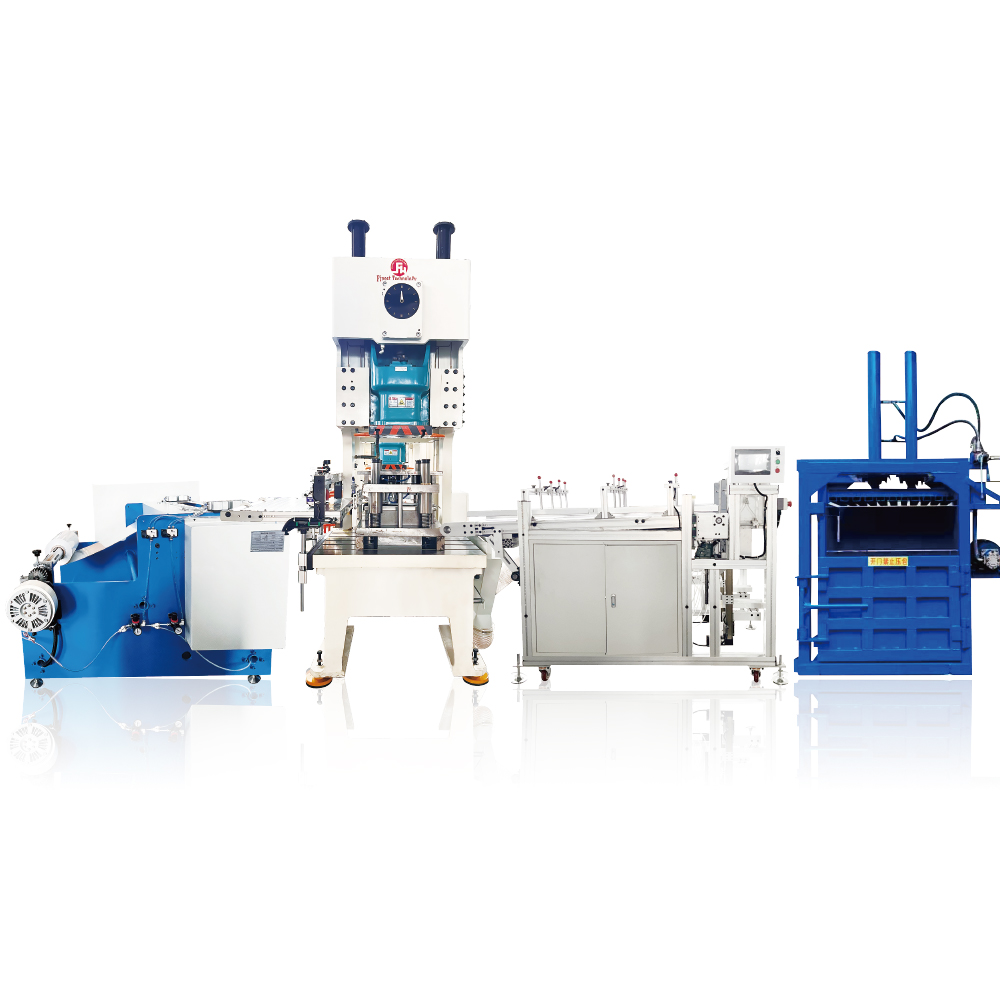

With four core modules- automatic feeder, high-speed punch press, automatic stacker, and scrap baler- the line delivers an integrated workflow from material unwinding and conveying to web guiding, tray forming, 1–6 track automatic collection, and scrap compression. This fully integrated process streamlines production, boosts efficiency, and cuts labor costs.
1. Automatic Feeder (Conveying & Web Guiding)
The automatic feeder handles unwinding, material conveying, and web correction. It accommodates material widths ranging from 800mm to 1600mm and supports various material sizes with simple and fast installation.
Designed referencing advanced Italian structures, it adopts an upgraded double-roll oil feeding system to precisely control the spraying area and dosage of stamping oil. Compared with conventional machines, it greatly reduces consumable waste and achieves remarkable energy-saving performance.
Besides, the design with independently driven dual-motor heads fundamentally solves problems such as jamming, slipping, and material deviation during substrate conveying. It significantly improves feeding accuracy and stabilizes the finished product pass rate.

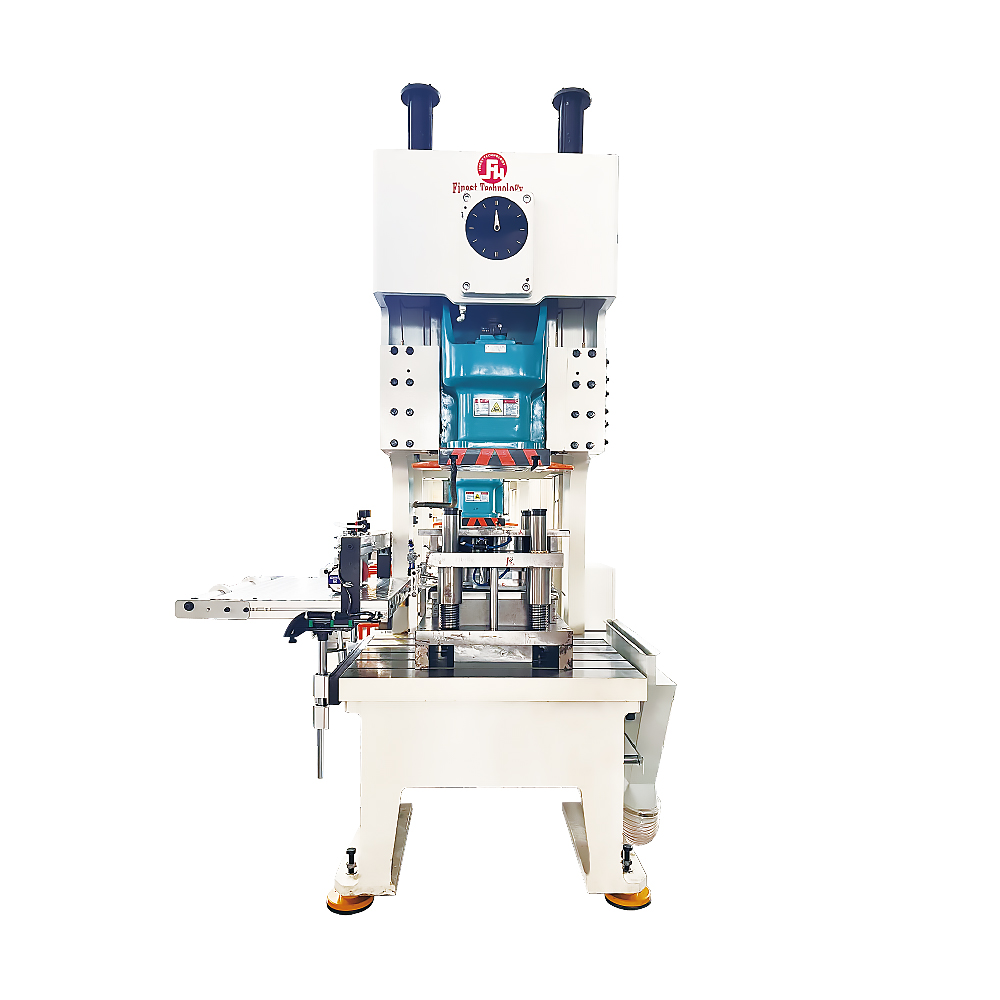

2. High-speed Pneumatic Punch Press (Precise Stamping & Forming)
Our aluminum foil tray forming machine adopts high-performance high-speed pneumatic punch presses (brand: Worthing or Yangli), with a service life of over 50 years, far exceeding generic machine tools.
Available tonnage options include 45T, 63T, 80T, 130T, and 200T to fully satisfy diversified client requirements.
The 200T aluminum foil tray forming model is equipped with a Siemens PLC, brand-name frequency converters, and other premium electrical components. It runs at a high speed of 40–68 pieces per minute. The maximum forming depth reaches 140 mm, and the maximum raw material width is 1600 mm. With a 1000×1650 mm worktable, it features superior stability and durability compared to traditional machines, capable of continuous high-frequency and heavy-load operation.
Custom mold service is available, including single-cavity, multi-cavity, various shapes, and personalized logo embossing. With a well-engineered structure, it achieves nearly zero defective products.
3. Automatic Stacker (Neat Product Stacking)
The automatic stacker neatly stacks stamped finished trays automatically. No manual picking is required, and it can directly connect to subsequent packaging procedures, reducing repetitive labor, raising efficiency, and improving profit margins.
It can be flexibly configured to match enterprise capacity needs, with single-track, dual-track, and multi-track options.
4. Scrap Baler (Scrap Recycling & Handling)
The scrap baler collects edge scraps generated during production in real time and compresses them into bales. It keeps the workshop tidy and facilitates material recycling, greatly lowering storage and transportation costs.
While greatly improving production efficiency, this fully automatic aluminum foil tray line from Jiangsu Finest ensures consistent product specifications and full-process production hygiene and safety. It has become a reliable, hassle-free choice for large-scale aluminum foil product factories at home and abroad.
